types

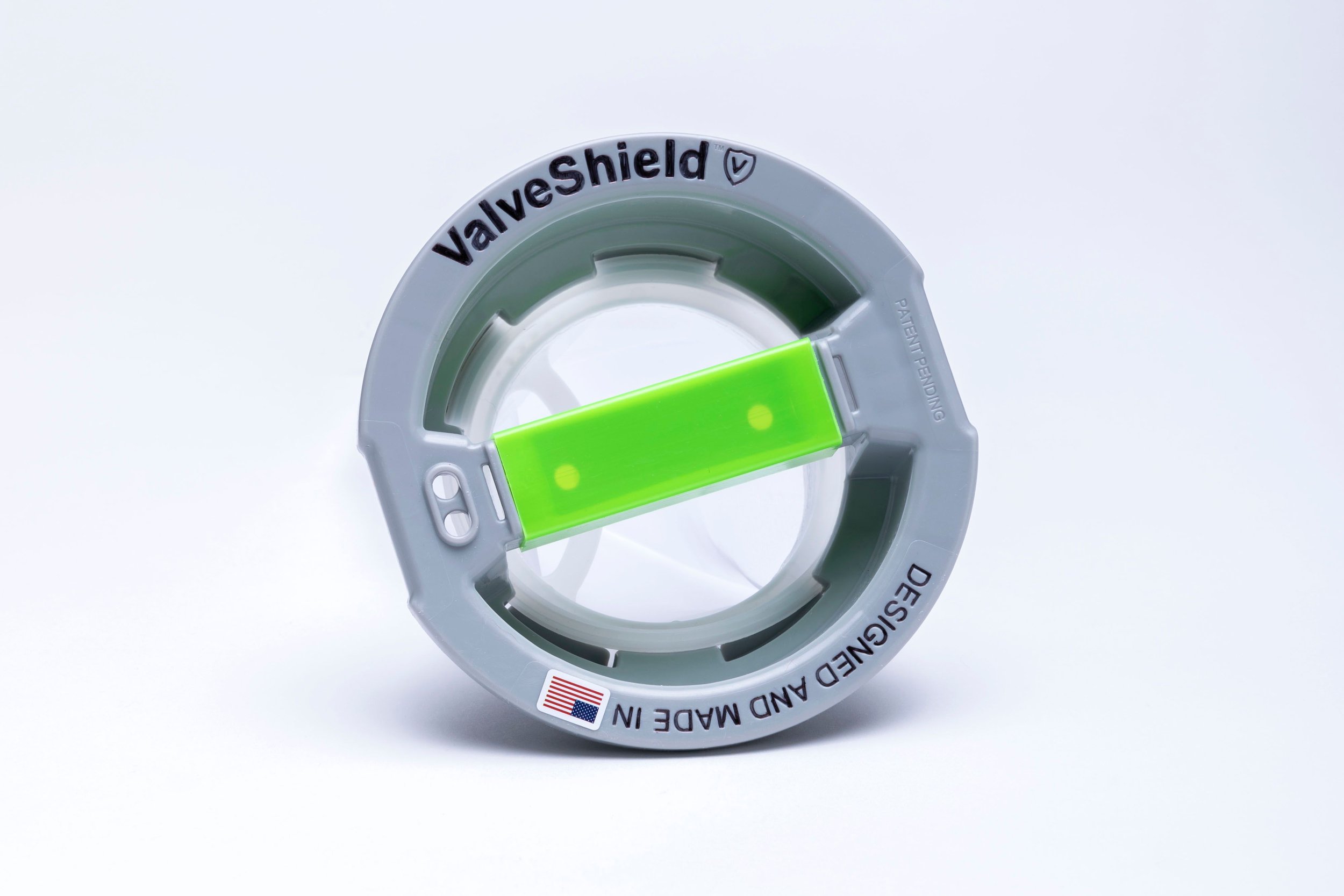

S-body (screw-in) Type ValveShield®

Designed to fit into the East Jordan 8550 Screw Type 5-1/4” Valve Box and similar domestic and foreign castings, this ValveShield® screws into the top riser using its own internal adjustment threads. An attached 4” by 14” reusable filter hangs below the handle, capturing up to 14 pounds of dirt and debris and preventing the valve from becoming clogged. A color-coded handle cover is included to protect a GIS identifier or QR code label.

D-body (drop-in) type ValveShield®

Designed to fit into the East Jordan 8555 Slip Type 5-1/4” Valve Box and similar domestic and foreign castings, this ValveShield® drops directly into the base. An attached 4” by 14” reusable filter hangs below the handle, capturing up to 14 pounds of dirt and debris and preventing the valve from becoming clogged. A color-coded handle cover is included to protect a GIS identifier or QR code label.

  • Patented design

  • Easily removed, cleaned, and reusable filter

  • Designed for screw-in type castings (East Jordan 8550 and similar)

  • Eliminates unwanted debris in valve boxes down to .02microns (human hair 75.0 microns) with a field-tested 98.7% capture rate.

  • Angled surfaces for maximum debris capture

  • No moving parts to break off

  • Non-conductive HDPE material

  • 4” by 14” reusable nylon mesh filter manufactured by PALL Corporation

    • Variable filtration size based on geographic region

  • Patented design

  • Easily removed, cleaned, and reusable filter

  • Designed for drop-in type castings (East Jordan 8555 and similar)

  • Eliminates unwanted debris in valve boxes down to .02microns (human hair 75.0 microns) with a field-tested 95.0% capture rate.

  • Angled surfaces for maximum debris capture

  • No moving parts to break off

  • Non-conductive HDPE material

  • 4” by 14” reusable nylon mesh filter manufactured by PALL Corporation

    • Variable filtration size based on geographic region
